About this vehicle
Description

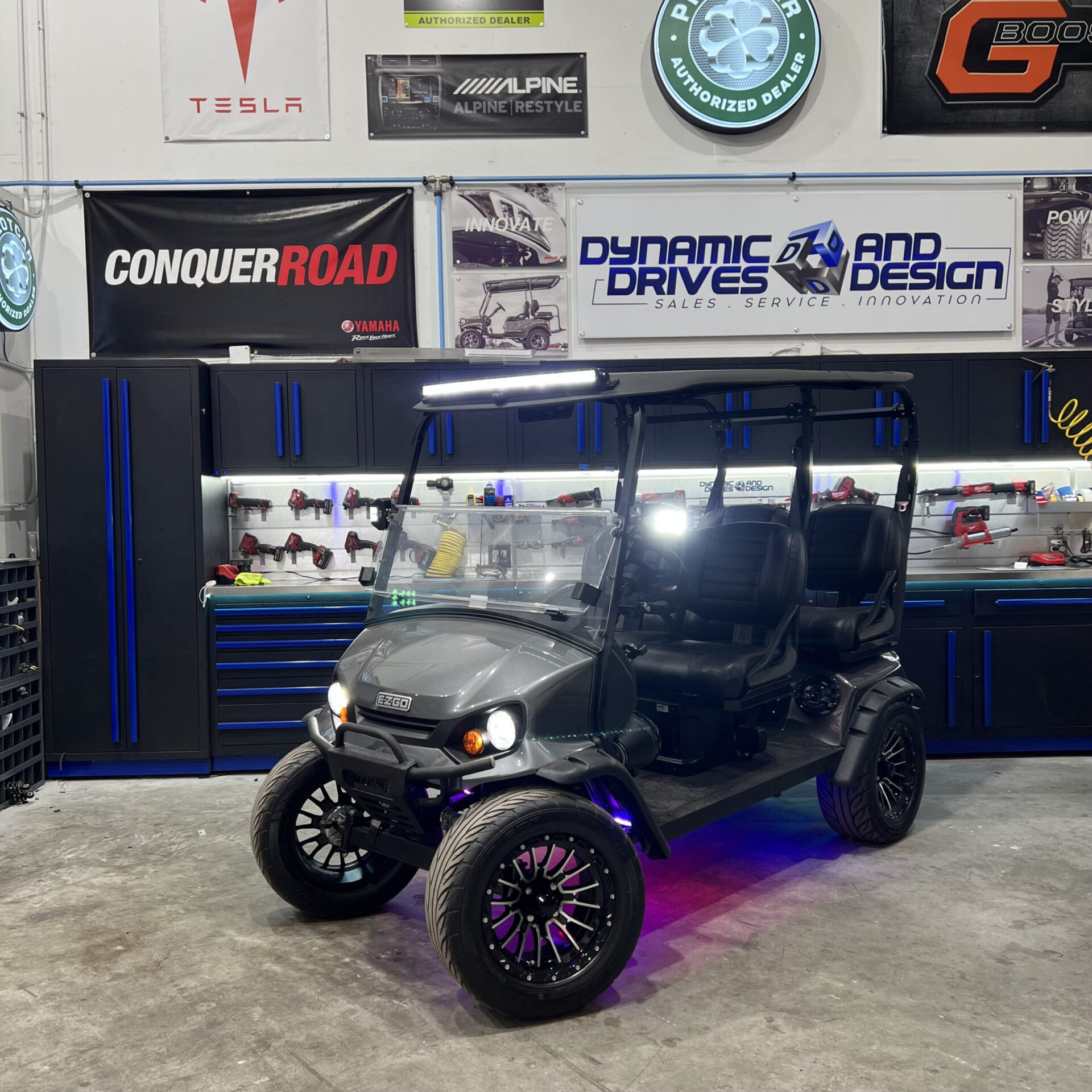

E‑Z‑GO Liberty Elite four-forward facing seats. ELITE lithium E‑Z‑GO is powered by Samsung SDI lithium battery system.
POWER ELITE LITHIUM
POWER SOURCE: 56.7V DC
MOTOR TYPE: AC Induction
HORSEPOWER: (KW) 11.7 hp (8.7 kW)
ELECTRICAL SYSTEM: 56.7V
BATTERIES (QTY/TYPE): Single, 56.7V Li-Ion Composite Module (Standard Configuration)
KEY OR PEDAL START Pedal
BATTERY CHARGER: 56.7V 350 W Domestic Charger, 3m Charging Cord
SPEED CONTROLLER: 235 amp AC controller
DRIVETRAIN: Motor Shaft Direct Drive
TRANSAXLE: Differential with Helical Gears
GEAR SELECTION: Dash Mounted FNR/Key Switch
REAR AXLE RATIO: 16.99:1 (Forward)
PERFORMANCE ELITE LITHIUM
SEATING CAPACITY: 4-passenger
DRY WEIGHT: 854 lb (387 kg) (without batteries)
CURB WEIGHT: 900 lb (408 kg)
DASH/ IP STORAGE CAPACITY: 1123 in²
VEHICLE LOAD CAPACITY: 800 lb (364 kg)
TOW CAPACITY: 500 lbs
REAR CARGO RACK LOAD CAPACITY: 100 lb (45.6 kg)
TURNING RADIUS: 12.85 ft (3.92m)
OUTSIDE CLEARANCE CIRCLE: 25.7 ft (7.83 m)
SPEED (LEVEL GROUND): 19.5 mph (31 kph) +/- 0.5 mph (0.8 kph)
